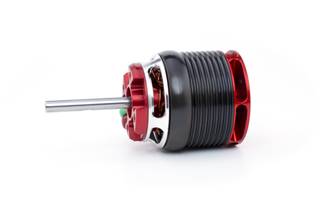

MINIPYRO

For 450 and 500 size helicopters, the MINIPYRO 400 goes to the starting line. The same choice of materials as all PYROs distinguish it and make it a real PREMIUM LINE product. The MINIPYRO is available in three different speeds so it can be perfectly matched to your application for use up to 6 S.

1 kW continuous power enables 3D aerobatics at its best.

MINIPYRO in short:

• Neodym magnets, heat resistent up to 150 degree C
• Dedicated enameled wire, heat resistent up to 300 degree C
• Optimized metal sheets
• Optimized ventilation
• Radial fan
• Optimized magnet circuit

K27106 MINIPYRO 400-10 TDSF

MINIPYRO 400-10 TDSF

• 1.000 RPM/V
• max. 24.000 RPM/min
• 1 kW continuous
• 14 poles
• 10,5 inner resistance

Manual

MINIPYRO 400-13

• 5 mm shaft diameter
• 35 mm free shaft length
• 210 g

Order # 27106

*pictures and photos for reference only
